Video Endoscope Inspection Camera

Video Endoscope Inspection Camera

This Inspection Camera uses optoelectronic technology to investigate hard-to-reach areas. The camera head equips of adjustable high-intensity LEDs (with brightness control) to illuminate the inspection areas specifically.

The can capture images up to 2 megapixels or videos (AVI) up to 720p HD and conveniently save your data in MicroSD memory (memory is not a removable) or output to PC by Video Out and USB interface respectively.

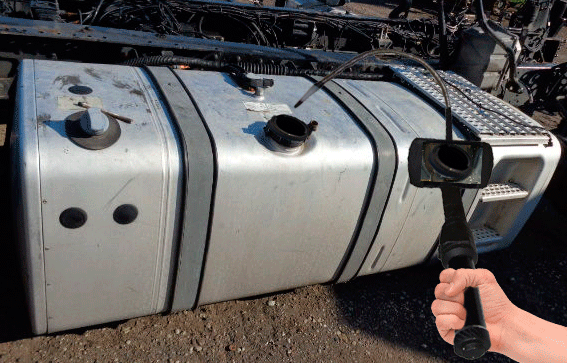

The flexible tube with slim 10 mm camera head is waterproof so that can inspect areas under water, gaps and holes especially with small openings. Ergonomic and robust designs of this product are including one-hand operation and stainless steel shield, Flexible Probe, portable, easy to operate and stable performance. Is ideal for industries such as: automotive, electrical, plumbing, heating, ventilation, air conditioning, refrigeration and general home inspection, building and home construction, aviation, vehicles maintenance.



  • ·         Display: 4.5"or 6.5" color LCD with 640x480 pixels resolution
  • ·         Video Resolution:  640x480 / 1280x720
  • ·         Image Resolution: 640x480 / 1600x1200
  • ·         Data Storage Media: 2GB MicroSD card included (supports up to 32GB)
  • ·         Camera Head: 10 mm diameter with adjustable LEDs
  • ·         Viewing Angle: 60°
  • ·         Depth of Field: 80mm ~ infinity
  • ·         Probe Length: 0.5 m to 5 m
  • ·         Probe and Camera Head Protection: IP67
  • ·         Operating Temperature: 0 ~ 45 °C (32 ~ 113 °F)
  • ·         Power Source: 3 x li-ion 18650 batteries
  • ·         Max Battery Life: 4 ~ 6 hours
  • ·         Dimension (Grip): 460 (L) x 130 (W) x 95 (H) mm (excluding the probe)
  • ·         Weight: 745 g (excluding the probe)


Video Endoscope Inspection Camera

The unit properly takes pictures as well as video. The pictures/video can be viewed directly on the unit or on your computer.


The probe/head module can be detached to connect alternate heads with different camera types and cable lengths.
